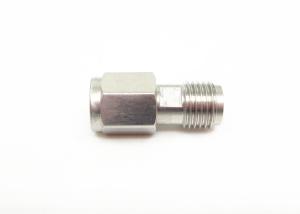

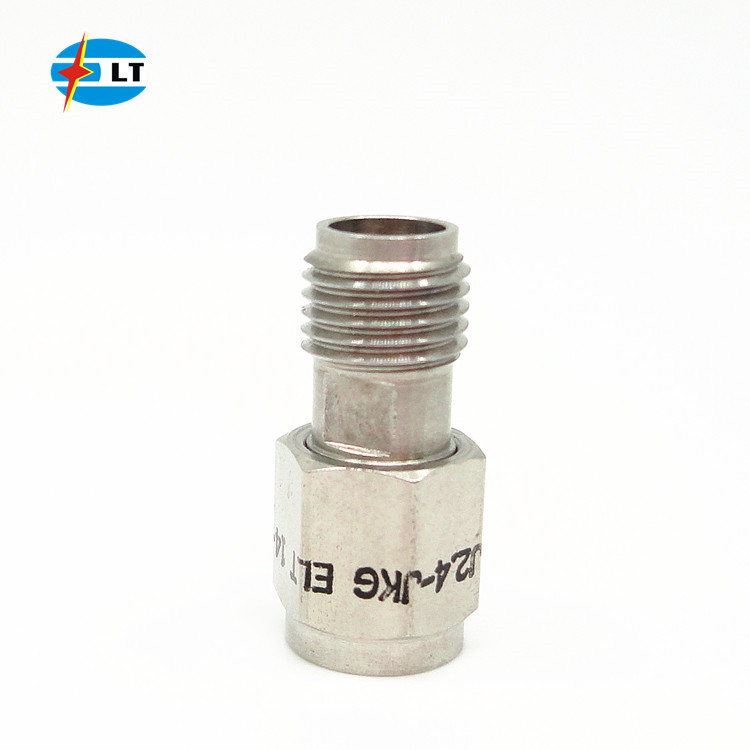

Stainless Steel 2.4mm Male to Female Straight Millimeter Wave MMW RF Adapter

Brand Name : ELT

Model Number : ELT-2.4-JKG

Certification : CE,ROHS

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35000pcs/year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Material : Stainless Steel

Gender : Male

Product name : 2.4mm

Keywords : Millimeter Wave Adapter

Item : Millimeter Wave Adapter

Plating : Nickel Plated

Application : RF

Surface Plating : Passivated

Plated : Nickel Plated

Contact Now

Stainless Steel 2.4mm Male to Female Straight Millimeter Wave MMW RF Adapter

The 2.4mm type products is a kind of high performance millimeter wave (MMW)connectors, the frequency is 50GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.

The high precision 50Ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Stainless Steel 2.4mm Male to Female Straight Millimeter Wave MMW RF Adapter
Specification:

Stainless Steel 2.4mm Male to Female Straight Millimeter Wave MMW RF Adapter

Impedance	50Ω
Frequency Range	DC - 50GHz
Voltage Rating	170 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	500 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05+0.005f
Contact Resistance	Center Conductor ≤ 3mΩ
	Outer Conductor ≤ 2mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PEI
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m
Insertion loss	<.04 sqrt(f(GHz)) dB
Temperature range	-65 ℃~+165 ℃
Contact pin	Gold Plating

Features:

•2.4mm connector is a kind of precision microwave connectors. The frequency can be up to 50GHz.
•Stainless steel construction
•Superior electrical performance to 50GHz
•Connectors in End Launch and Flange Options
•Adapters to 2.4mm, SMP, 2.92mm, SMA.
•Great for applications that require high frequency transmission
•Connector mating interface per MIL-STD-348
•Excellent reliability where extreme shock & vibration conditions are experienced
•Quick connect cable plugs and adapter

Application:

* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
