Brass Gold Plated Female 2.4mm Miniature RF Connector

Brass Gold Plated Female 2.4mm Miniature RF Connector

The 2.4mm type products are a kind of high performance millimeter wave (MMW)connectors, the frequency is 50 GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.

The high precision 50 Ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

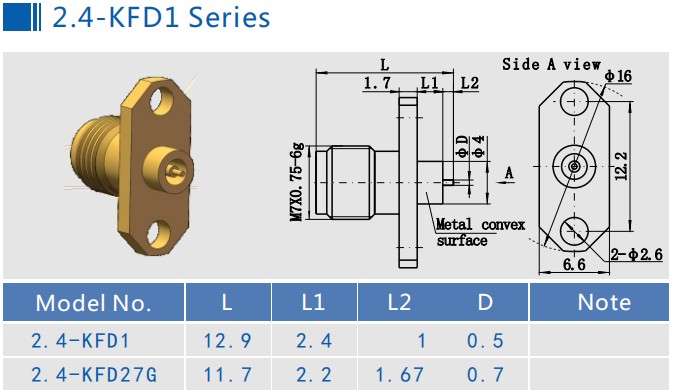

Specification Brass Gold Plated Female 2.4mm Miniature RF Connector(mm):

Features of Brass Gold Plated Female 2.4mm Miniature RF Connector(mm):

•2.4mm connector is a kind of precision microwave connectors. The frequency can be up to 50GHz.
•Stainless steel construction
•Superior electrical performance to 50 GHz
•Connectors in End Launch and Flange options
•Adapters to 2.4mm, SMP, 2.92mm, SMA.
•Great for applications that require high frequency transmission
•Connector mating interface per MIL-STD-348
•Superior electrical performance up to 50 GHz
•Excellent reliability where extreme shock & vibration conditions are experienced
•Quick connect cable plugs and adapter

Application:

2.4mm Miniature Rf Connectors

Brass Miniature Rf Connectors

2.4mm rf barrel connector

Brass Gold Plated Female 2.4mm Miniature RF Connector Images
