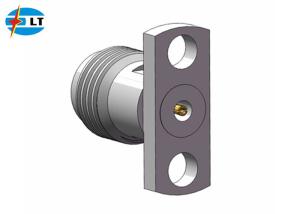

50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector

Name: 50Ohm MMW 24mm RF Connector Female Jack Straight RF Connector
Brand: ELT (Elite)
Price: 1 USD

Wholesale 50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector from china suppliers

Brand Name : ELT (Elite)

Model Number : 2.4-KFD26G

Certification : CE ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35000pcs/year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : 2.4mm RF Coaxial Conector

Impedance : 50Ω

Certificate : CE ROHS

Lifetime : 500Cycles

Application : Computer/LANs

Material : Stainless steel

Plating : Passivated

Gender : female

Contact Now

50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector

2.4 Type product is a high performance millimeter wave connector, the frequency is 50 GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.

The high precision 50 ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Specification of 50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector(mm):

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC～50GHz
Rated Voltage	170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	500VRMS (Maximum sea-level)
Insulation Resistance	≥5000MΩ
Contact Resistance	Outer conductor	≤2mΩ
	Center conductor	≤3mΩ
VSMR	≤1.05+0.005f

Detailed Drawing of 50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector(mm):

Model No.	Description
2.4-KFD26G	2.4mm Male Straight RF Connector

Features:

•Stainless steel construction

  •Superior electrical performance to 50 GHz

•Connectors in End Launch and Flange options

  •Adapters to 2.4mm, SMP, 2.92mm, SMA

  Advantages:

	Normal products	Elite products
Frequency Range	DC~40GHz	DC~65GHz
VSWR	≤1.35	≤1.3
Durability	300 Cycles	>500 Cycles

Application:

* Research centres
* Satellite communications
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation

* Automotive
* Computer/LANs
* Telecommunications

Our Main Products

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
