2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cable
2.4 mm High-Frequency Adapters and Connectors
Xi'an Elite Electronic offers 2.4 mm connectors and adapters made with high performance, quality, durability, and signal integrity
Image of Xi'an Elite Connector's 2.4 mm product line of adapters now includes a 2.4 mm high-frequency, and quick connect options. These adapters interface between 2.4 mm standard and other popular interfaces, such as 2.92 mm, SMA, and SMP. The 2.4 mm series operates up to 50GHz and delivers a performance maximum VSWR of 1.25 and typically below 1.20. The high-frequency adapters are ideal for multiple applications.
The 2.4 mm connectors are operating to 50GHz with VSWR performance of 1.20 to 1.25. Xi'an Elite Electronic continues to deliver end launch solutions with a jack/plug offering.
Outline Drawing of 2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cablee:(mm)
Specification of 2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cable(mm):
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC～50GHz |
| Rated Voltage | 170VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 500VRMS (Maximum sea-level) |
| Insulation Resistance | ≥5000MΩ |
| | Outer conductor | ≤2mΩ |
| Center conductor | ≤3mΩ |
| VSMR | ≤1.05+0.005f |

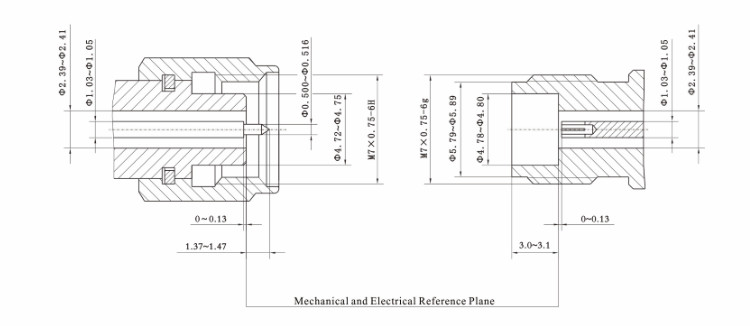

Detailed Drawing of 2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cable(mm):
Features of 2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cable(mm):
• The 2.4mm connector is a precision microwave connectors.
• Stainless steel construction
• Superior electrical performance to 50GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.
• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Superior electrical performance up to 50GHz
• Excellent reliability where extreme shock & vibration conditions are experienced
• Quick connect cable plugs and adapter
Advantages of 2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cable(mm):
*Small Size
*High Reliable
*Good Mechanical Performance
*Wide Frequency Range from DC to 50GHz
Application of 2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cable(mm):
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
